Ongoing Work at the First Congregational Church of Los Angeles
 |
 |
 |
||

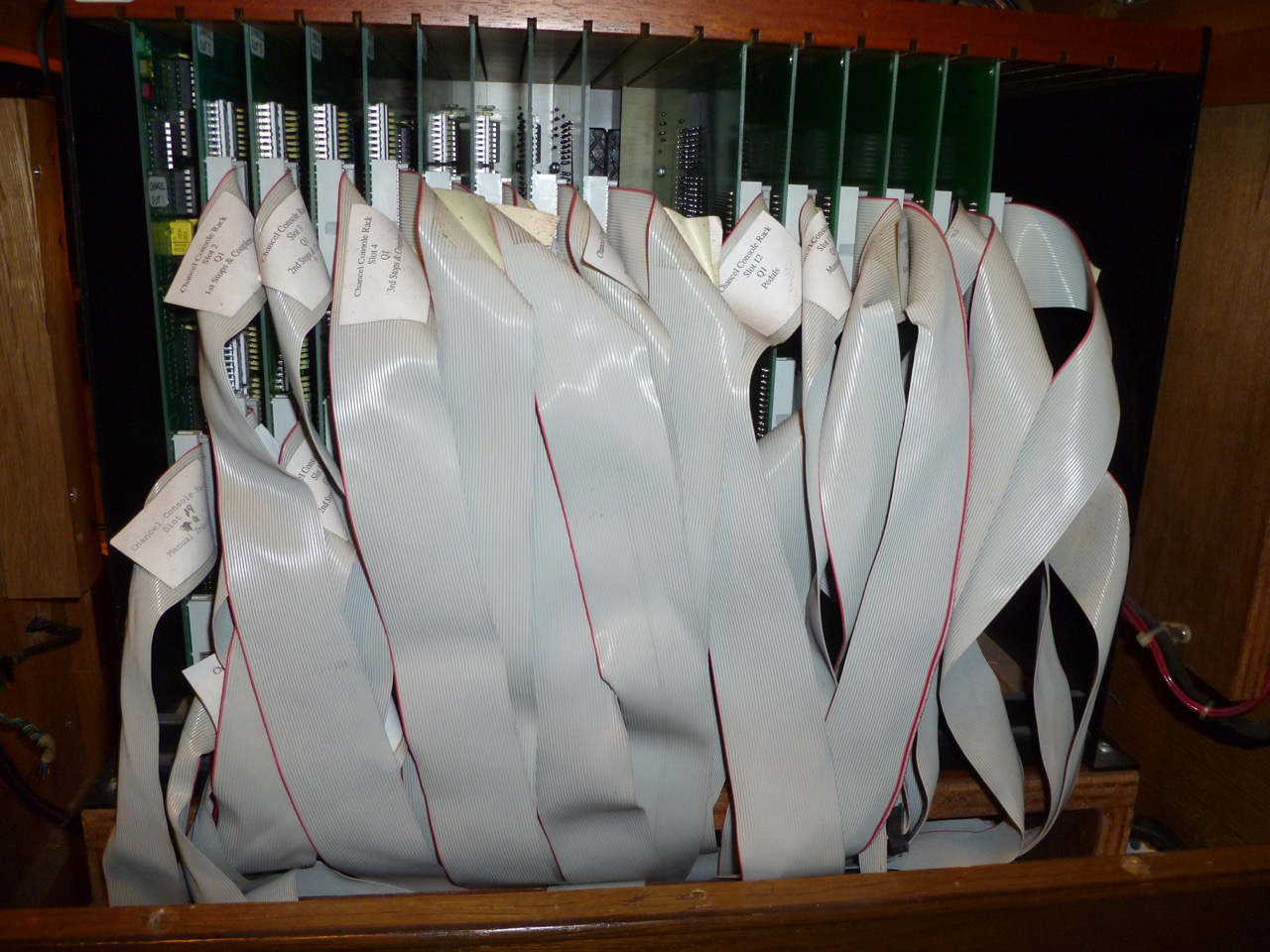

| One small portion of the old system. This Ribbon cable mess is replaced with clean wiring panels called planes. | This is the left side of the console showing the new wiring plane prior to wiring. The blue items to the right are the rear of the stop draw knobs. | This is the rear of the console with the old ribbon cable removed and the existing wiring cleaned up prior to wiring on the new system. | ||
 |
 |
|||

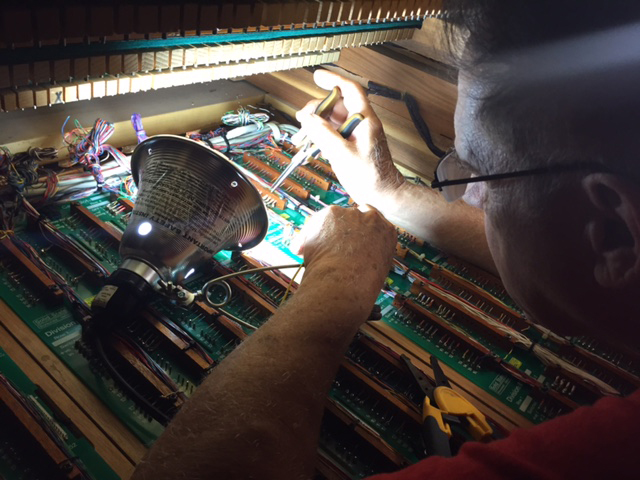

| In the wiring process. This is Roger Hardesty volunteering his time. Roger was a tremendous help. Between the three of us there were over 4000 wire connections! | Brian Sawyers diagnosing specific termination points on a wiring plane. |
